About This Product

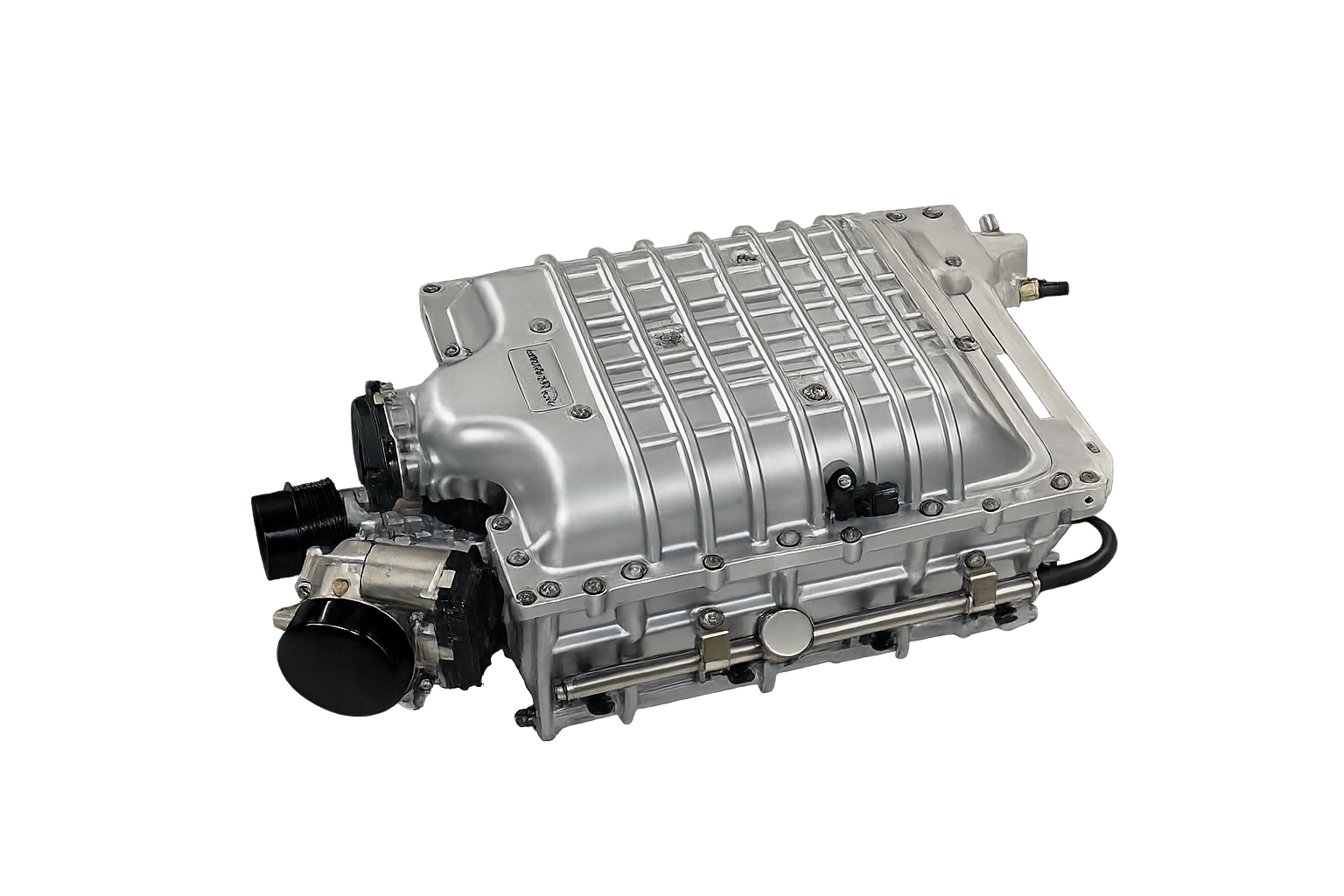

Hellcat Supercharger Tune Add-On
This custom remote tuning add-on is designed for customers installing a Hellcat supercharger on a naturally aspirated Chrysler, Dodge, Jeep, or RAM HEMI engine. Common applications include adding a Hellcat blower to a 5.7L HEMI, 6.1L HEMI, or 6.4L HEMI that was not originally equipped with a supercharger.
Your calibration will be built around your actual engine, Hellcat blower, pulley size, boost level, injectors, fuel system, MAP sensors, throttle body, camshaft, transmission, fuel type, and complete modification list using supported HP Tuners controllers.
This Is a Tune Add-On
The Hellcat Supercharger Tune Add-On is not a complete standalone tune by itself. It must be purchased with the correct Custom Remote Tune for your Chrysler, Dodge, Jeep, or RAM.
Select this option when converting a naturally aspirated HEMI to a Hellcat supercharger setup. If the engine also has an aftermarket camshaft, select the correct camshaft tuning option in addition to this Hellcat blower add-on.
Built Specifically for Hellcat Supercharger Conversions
Installing a Hellcat supercharger on an engine that was originally naturally aspirated requires much more than adding fuel at wide-open throttle. The calibration must be configured for the increased airflow, boost pressure, injector flow, MAP sensor range, throttle behavior, torque output, engine protection, transmission load, and fuel system.
- Built from your actual factory read file and complete vehicle information
- Boosted fueling and spark calibration for your specific HEMI combination
- Injector data setup using your supplied injector manufacturer and part number
- MAP and boost sensor configuration for supported Hellcat blower conversions
- Airflow calibration for the supercharger, intake, throttle body, and sensor configuration
- Idle, startup, cold-start, and drivability support for stock-cam or cammed setups
- Torque-management and electronic throttle adjustments where supported
- Remote datalog revisions based on your actual vehicle and operating conditions
Designed For
- Hellcat supercharger swaps on naturally aspirated HEMI engines
- 5.7L HEMI engines converted to a Hellcat blower setup
- 6.1L HEMI engines converted to a Hellcat blower setup
- 6.4L HEMI engines converted to a Hellcat blower setup
- Stock-cam or aftermarket-cam boosted HEMI combinations
- Chrysler, Dodge, Jeep, and RAM applications where supported
- Street-driven trucks, SUVs, sedans, muscle cars, and custom HEMI swaps
Common Applications
- RAM 1500 5.7L with a Hellcat supercharger conversion
- Dodge Charger 5.7L or 6.4L Hellcat blower swap
- Dodge Challenger 5.7L or 6.4L Hellcat blower swap
- Chrysler 300 5.7L or 6.4L Hellcat blower conversion
- Jeep Grand Cherokee 5.7L or 6.4L Hellcat supercharger conversion
- Dodge Durango 5.7L or 6.4L Hellcat blower setup
- Custom HEMI swap vehicles using a Hellcat supercharger
What This Tune Add-On Covers
- Hellcat supercharger airflow calibration
- Boosted power-enrichment fueling
- Injector flow-rate and offset data setup
- MAP and boost sensor configuration where supported
- Airflow and load calibration for the blower setup
- Boosted spark calibration
- Startup and idle airflow adjustments
- Cold-start and hot-start adjustments
- Part-throttle drivability calibration
- Electronic throttle calibration where supported
- Driver-demand and torque-management adjustments
- Calculated torque and transmission load adjustments where supported
- Wide-open-throttle remote tuning through approved datalogs
- Transmission tuning when included in your selected tune package
Supported HEMI Engines
- 5.7L HEMI engines where supported
- 6.1L HEMI engines where supported
- 6.4L HEMI engines where supported
- Eagle 5.7L HEMI applications
- Apache 6.4L HEMI applications
- Car and truck HEMI combinations
- Other compatible HEMI engines with approved combinations
Camshaft Compatibility
This Hellcat supercharger add-on may be selected for either a stock-cam or aftermarket-cam HEMI engine.
- Stock camshaft Hellcat blower conversions
- Stage 1 camshaft combinations
- Stage 2 camshaft combinations
- Stage 3 camshaft combinations
- BTR, Texas Speed, COMP, MMX, Greene Racing, and other supported camshafts
- Custom camshafts when complete cam specifications are supplied
If your engine has an aftermarket camshaft, the correct camshaft tuning option must also be selected when ordering.
Required Supporting Modifications
Your engine and fuel system must be properly prepared for forced induction before tuning begins. The exact supporting parts required depend on engine size, pulley size, boost pressure, fuel type, camshaft, and intended power level.
- Properly sized fuel injectors with verified injector data
- Fuel pump and fuel system capable of supporting the intended power level
- Correct fuel pressure and regulator setup
- Compatible MAP and boost sensors with known calibration data
- Properly installed intercooler and cooling system
- Correct supercharger belt drive, pulley alignment, and tensioner setup
- Proper crankcase ventilation and catch-can system where applicable
- Wideband oxygen sensor available for remote tuning when requested
- Correct spark plugs and ignition components for the intended boost level
- Mechanically sound engine with proper compression and oil pressure
- Transmission and drivetrain capable of handling the increased torque
What We Need From You
- Email your factory read file to Tunes@JRJonesRacing.com
- Include your order number
- Include vehicle year, make, model, and engine size
- Include PCM and transmission information
- Include Hellcat supercharger model and pulley size
- Include expected or measured boost pressure
- Include injector manufacturer, part number, and flow rate
- Include complete fuel-pump and fuel-system information
- Include MAP and boost sensor part numbers
- Include throttle-body and intake configuration
- Include fuel type and octane
- Include camshaft specifications if applicable
- List every engine, exhaust, transmission, and drivetrain modification
Remote Datalog Requirements
- HP Tuners-compatible interface and licensed vehicle
- Compatible Windows laptop
- Stable battery voltage during reading and flashing
- Wideband oxygen sensor when requested
- Fuel-pressure verification before boosted logging
- Ability to perform idle, cruise, part-throttle, and controlled boost logs
- Safe road, dyno, or controlled testing environment
- No wide-open-throttle testing until specifically approved
How Remote Tuning Works
- Purchase the correct Custom Remote Tune and add the Hellcat Supercharger Tune Add-On
- Send your factory read file and complete modification information
- Your initial calibration is personally prepared by Jason
- Flash the initial tune using supported HP Tuners hardware and software
- Record the requested idle, startup, cruise, and part-throttle datalogs
- Boosted logging is introduced gradually after the basic calibration is verified
- Revisions are completed using your actual datalogs until the supported calibration is dialed in
Why Choose J.R. Jones Racing?
Your Hellcat supercharger tune is built around your actual vehicle, engine, injector data, fuel system, boost level, camshaft, transmission, and supporting modifications. This is not a generic blower file copied from a different vehicle.
- Personally tuned by Jason
- Built from your actual factory read file
- Real remote datalog revisions included
- Support for stock-cam and cammed Hellcat blower combinations
- Support for Chrysler, Dodge, Jeep, and RAM HEMI applications
- Street-drivability focused calibration
- Boosted fuel, airflow, spark, torque, throttle, and transmission support
- Clear communication throughout the remote tuning process
Not Included
- HP Tuners hardware
- HP Tuners credits or vehicle licensing
- PCM unlock service unless purchased separately
- Fuel injectors or fuel-system components
- Wideband oxygen sensor
- Supercharger installation or mechanical repair
- Wiring diagnosis or electrical repair
- Dyno time
- Engine, transmission, or drivetrain parts
Best Fit Guidance
- Vehicles with unknown injectors or missing injector data
- Vehicles with inadequate fuel pumps or unstable fuel pressure
- Vehicles with boost leaks, belt slip, or intercooler problems
- Engines with active misfires, low compression, or mechanical damage
- Vehicles with overheating or cooling-system problems
- Unsupported or locked PCMs without the required unlock service
- Customers who cannot safely read, flash, and datalog their vehicle
- Race-only or extreme-power combinations without prior approval
PCM Unlock Notice
Many newer Chrysler, Dodge, Jeep, and RAM vehicles require an unlocked PCM before they can be tuned with HP Tuners. Purchasing this tuning add-on does not automatically include PCM unlocking, bypass hardware, HP Tuners credits, or vehicle licensing.
Confirm that your PCM is unlocked and supported before purchasing or contact Jason with your vehicle year, model, engine, and PCM information.
Forced-Induction Responsibility Notice
This is a performance calibration service for supported Hellcat supercharger conversions. You are responsible for ensuring your engine, fuel system, injectors, fuel pump, MAP sensors, intercooler system, belt drive, transmission, cooling system, spark plugs, wiring, sensors, and supporting components are properly installed and capable of safely supporting your intended boost and power level.
Tuning cannot correct mechanical failure, inadequate fuel supply, incorrect injector information, boost leaks, belt slip, excessive intake-air temperature, overheating, poor wiring, failed sensors, or improper installation.
J.R. Jones Racing is not liable for engine failure, transmission damage, drivetrain damage, PCM or TCM damage, failed flashing, incorrect customer-supplied information, inadequate supporting modifications, unsafe operation, or mechanical problems that existed before or during tuning.
Boosted Datalog Safety Notice
Do not perform wide-open-throttle or full-boost testing until specifically instructed. Initial datalogs are used to verify startup, idle, fuel trims, sensor operation, commanded fueling, fuel pressure, and basic drivability before higher-load testing begins.
All boosted testing must be performed in a safe and controlled environment. A chassis dyno is strongly recommended for higher-power combinations.
Secure Flashing Reminder
Always read and flash the PCM or TCM using a stable wired connection, proper HP Tuners software, and a battery charger or maintainer. Do not flash with low battery voltage, unstable laptop power, weak USB connections, or unsafe vehicle wiring.
The customer is responsible for having the correct HP Tuners hardware, software, credits, vehicle licensing, unlocked controller, bypass hardware, and stable equipment required to read, flash, and datalog the vehicle.
